Deblistering Machines - Product Recovery Systems
Mr. Deblister™, Mr. Deblister
Jr-XL™ and Mr. Deblister
Jr™ Product Recovery Systems are high speed
deblister machines that safely separate and remove product,
such as liquid gels, caplets, and tablets from blister cards,
including walletized blister cards.
The deblister machines are designed to be placed next to your thermoforming machine, so that rejects can be recovered during the lot run. Therefore, product in rejected cards can be repackaged without having to move the rejected product out of the packaging area, and before the next lot would reach the machine.
The system recovers push through, cold form and child resistant blister cards and has no difficulty with tight product blisters or stiffening ribs.
The ease of operation requires only 1/2 hour of training.
Benefits:
- Quick product recovery
- Rapid return on investment
- Reduction of repetitive strain injury
- Reduced cost of waste disposal
Mr. Deblister™ processes up 4800 cards per hour. Tooling changeover needs only 10 - 15 minutes. The change parts include: twelve nest plates, one magazine and one set each of custom perforation and push out tooling (varies according to card layout and products).

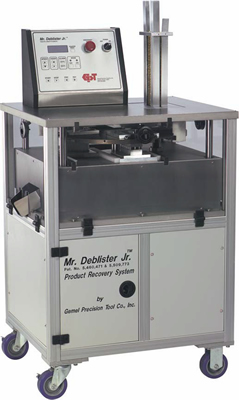

Mr. Deblister Jr™ and Mr. Deblister Jr-XL™ processes up to 3000 cards per hour. Tooling changeover needs only 3 - 5 minutes. The change parts include four nest plates, one magazine and one set each of custom perforation and push out tooling (varies according to card layout and products).
All machines are CE compliant.
Comparison Chart |
|||
|---|---|---|---|
| Mr. Deblister™ | Mr. Deblister Jr-XL | Mr. Deblister Jr™ | |
| Wiring | 220VAC 1 -60Hz 10A | 220VAC 1 -60Hz 10A | 220VAC 1 -60Hz 10A |
| Output up to | 4800/hour | 3000/hour | 3000/hour |
| Required Floor Space | 24" x 48" | 30" x 36" | 23" x 28" |
| Variable Speed |  |
|
|
| Micro Processor Control | |
|
|
| Allen Bradley PLC or 4 line Vacuum Fluorescent Display | |
|
|
| Jam sensing and mechanical overload protection | |
|
|
| Card Counter and Speed Indicator | |
|
|
| Fully automatic and manual modes | |
|
|
| Full mobility of entire system | |
|
|
| cGMP design allows easy cleaning | |
|
|
| Full guarding with safety interlocks | |
|
|
| Minimum Card Size | 30 x 50 mm |
30 x 50 mm | 30 x 50 mm |
| Maximum Card Size | 120 x 145 mm |
160 x 200 mm | 120 x 145 mm |
| Can separate multiple products | |
|
|
| Can be used as H.U.D. splitter | |
- | - |
| Patented and built in the USA | |
|
|
| Can be customized to handle larger blister cards | |
|
|
